PENTAS HDR 1012 Wireless DR System

Tags: , , ,


You can complete this order on location



Lexan handle for 1012 detector panel

Lexan Hoof Tunnel for use with specified DR detector panel. Rated for 400 Lb. static weight. *Use of non-approved hoof tunnels with Vetel Diagnostics\' DR systems will void any warranty coverage in place.

Product price: $29,950.00
Total options:
Order total:
FacebookTwitterGoogle PlusPinterestLinkedin

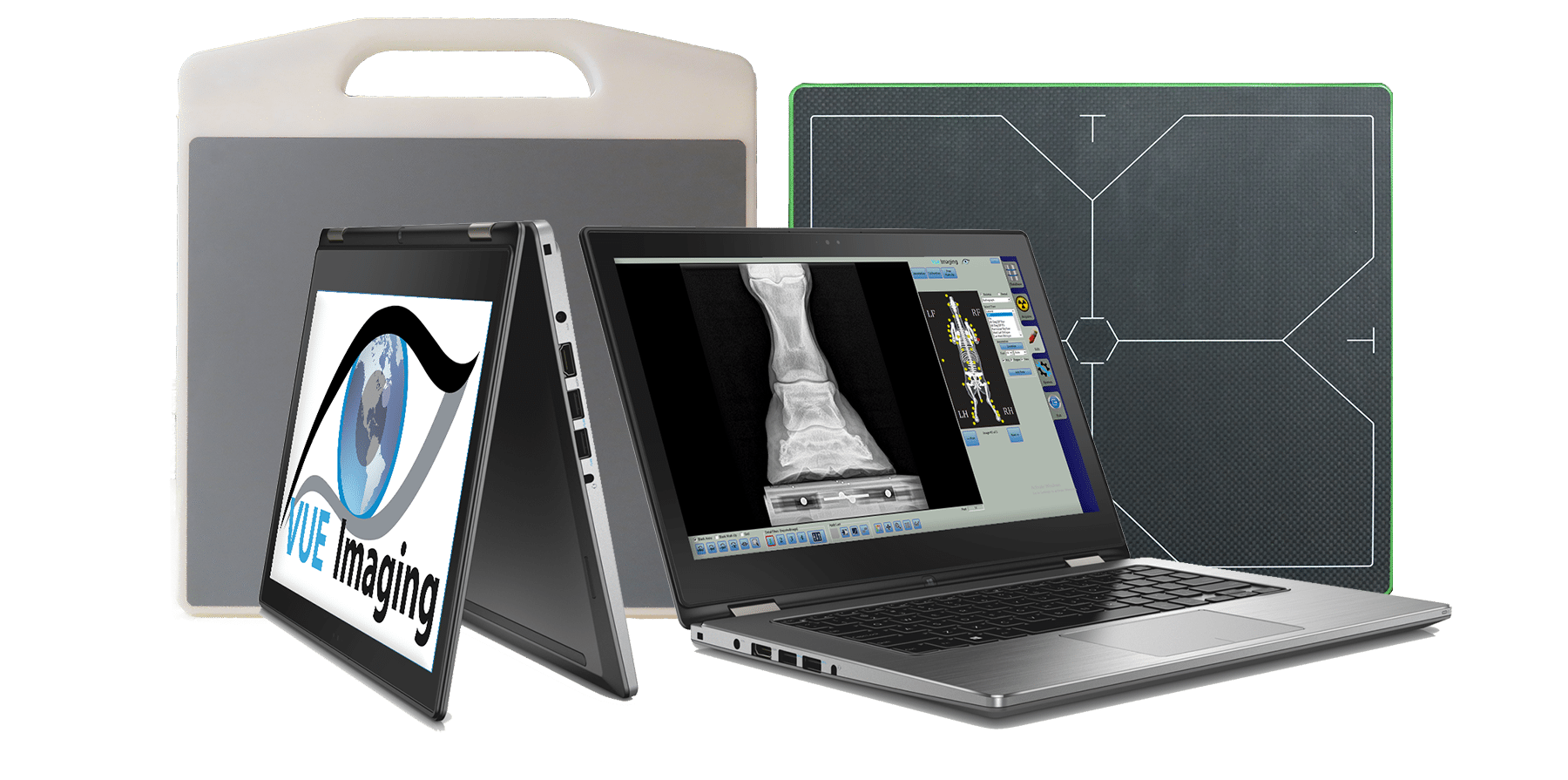

PENTAS 1012 Digital Radiography System

The rising star in veterinary digital radiography

PENTAS 1012 DR Systems include:

  • HDR Detector Panels – Highest Dynamic range available in the world
  • 5 year hardware warranty on every system
  • Comes with Mishap Immunity™ accident coverage*
  • Outperforming the competition in Image Quality, Price and Performance
  • American Made
  • Premium High Definition 1012 Csi Detector Panel with Panel Accessories (Battery/Charger/etc.)
  • Choice of Computer
  • Vizion™ Acquisition and viewing software
  • Soft Carry case
  • Cloud Back Up Included

Additional information


VUE Imaging


2-in-1 PC 15" Convertible Laptop, 2-in-1 PC 17" Convertible Laptop, Rugged Glove Touch Laptop



Panel Size

10 x 12

Condition Rating




Pixel Pitch

120 micron

Shades of Gray




Spacial Resolution (lp/mm)

4.16 lp/mm

System Details

Premium HDR 1012 Csi Panel

Fast wireless image transfer from high resolution, high dynamic range panel in sturdy, yet lightweight, anti-scratch aluminum alloy cassette with anti-shock and water resistant rubber edging.

The High Definition 1012 Csi detector panel is based on high performance CsI direct deposition technology and F2AED. This HD panel offers one of high resolution/performance design based on 120 um pixel pitch. This detector is designed and optimized for low-dose performance. It has both high resolution (4.2 lp/mm) and high DQE. In addition to the step-up of radiography performance, the dimension (1.5cm thick, standard film cassette size) and weight (2.2kg) of the 1012 panel is significantly more maneuverable.

Vizion DR – Image Acquisition and Display software

Acquisition Software with Pre-Set Filters, Viewing Software with Calibration Tools

  • Store images by Owner, Animal, Date
  • Image calibration and magnification corrected measurement tools
  • Data basing: multiple DBs, share a common DB, merge/copy DBs
  • World class All Species Image Algorithms and High Frequency filtering technology (MEGA)
  • Archival Functions: CD burning; Configurable for Internet based Off-site Archival service
  • DICOM 3.0 Conformance and file I/O
  • Able to write DICOM compliant CD
  • Ability to write “Viewer Export CD/DVD”
  • Includes 1 copy of Software

Choice of Computer:

  • 2-in-1 PC 15″ Convertible Laptop – A premium 2-in-1 PC with a 15.6” Full HD touch display. The convenience of a large Full HD display combined with the versatility of a tablet.
  • 2-in-1 PC 17″ Convertible Laptop – The first of its size, the powerful 17″ 2-in-1 defines upscale, with vast HD screen space, discrete graphics capability and a brushed aluminum design.
  • Rugged Glove Touch Laptop Upgrade – Go anywhere worry free with this premium Toughbook.

Warranty, Support and Drop Coverage

Mishap Immunity Coverage – Get protection from accidental panel damage from drops or kicks. Requires concurrent hardware warranty in place – Per Event*

*Deductible Fee applies – May be covered by Customer’s insurance

Warranty and Support

All new Digital Radiography systems come standard with 5 year Gold level hardware and one year Software support coverage. Vue Imaging warrants to the original purchaser that each new Digital Radiography Imaging System is free from defects in workmanship and materials for 12 months from date of sale to the end-user, and annually thereafter as purchased.

See purchase contract for amount and type of coverage included in original purchase price.

*All Vue Pentas digital radiography systems come with a 5 year Limited Hardware warranty.

*Hardware warranty claims require that the DR system is currently enrolled in VUE’s Software Support Program.
